BRAKE DISCS - 406

Discs priced individually

Model: 2.0 HDI

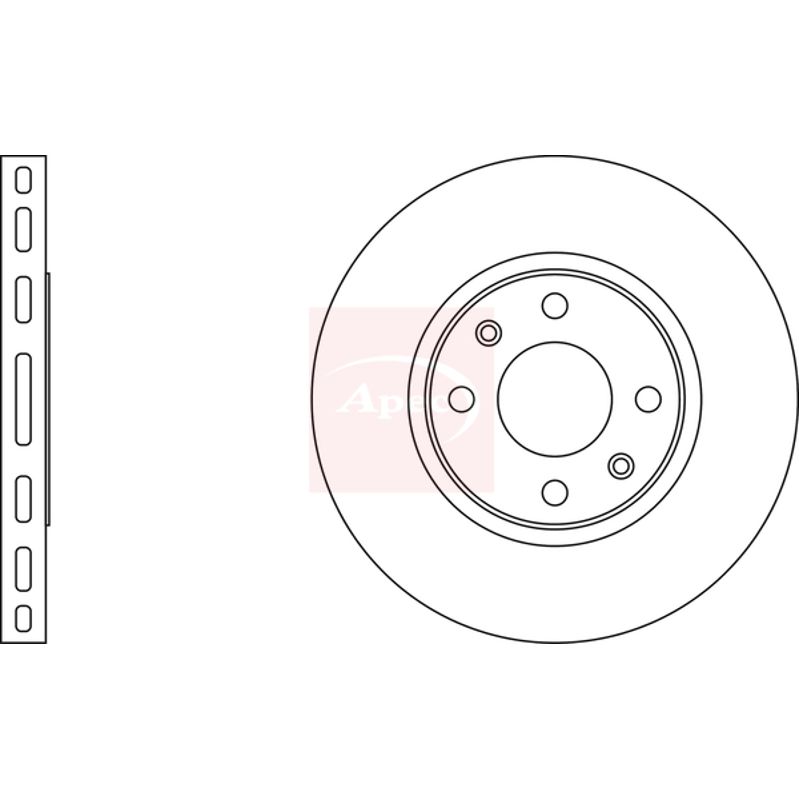

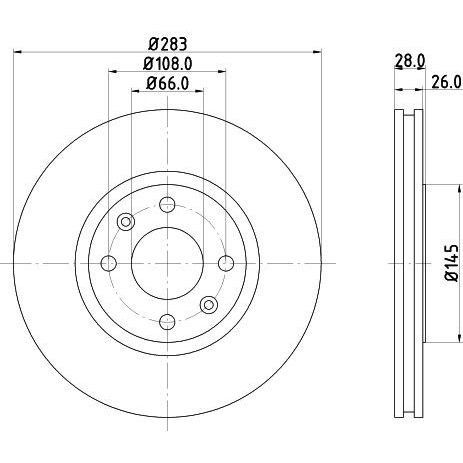

Fronts:

• Diameter [mm]: 283
• Externally Vented
• Drilled: No
• Without wheel hub
• Without bearing/wheel studs
• Brake Disc Thickness [mm]: 26
• Height [mm]: 28
• Centering Diameter [mm]: 66
• Hole: Number: 04 / 06
• Wheel Bolt Diameter [mm]: 13,2
• Bolt Hole Circle Ø [mm]: 108
• Minimum thickness [mm]: 24
• Inner Diameter [mm]: 133,3
• Weight [kg]: 6,8

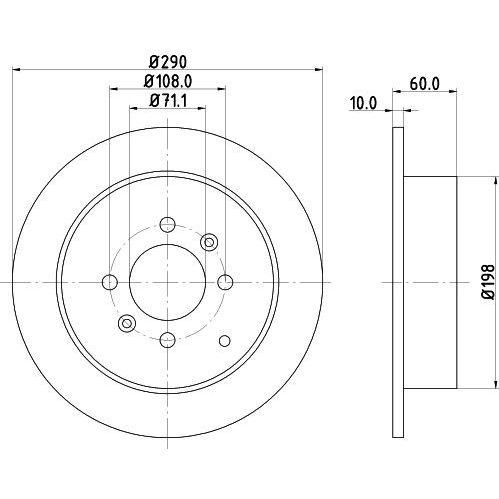

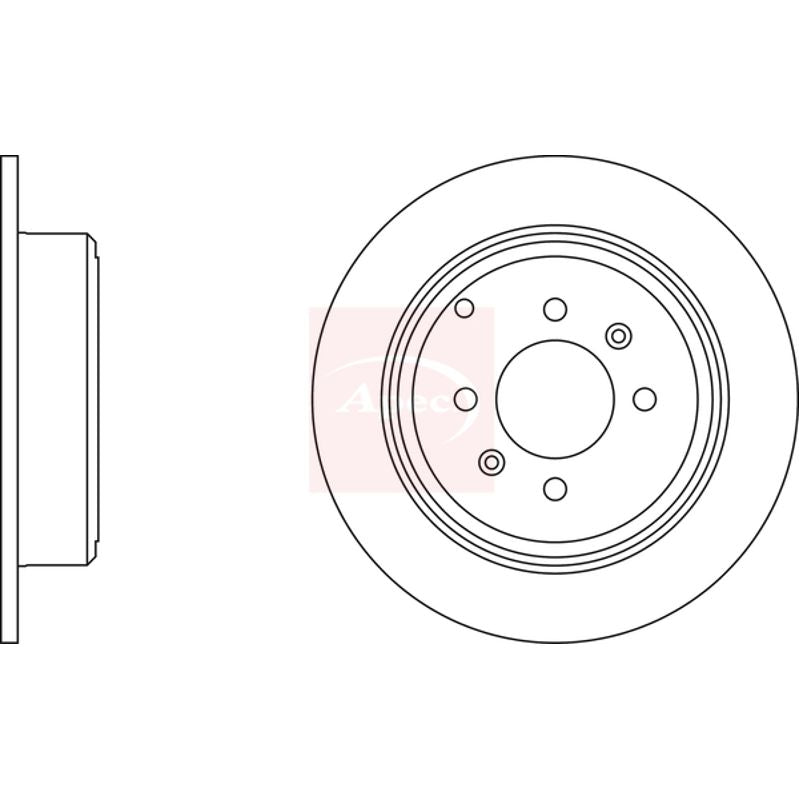

Rears:

• Diameter [mm]: 290
• Brake Disc Type: Solid
• Drilled: No
• Without wheel hub,
• Without wheel bearing/studs
• Brake Disc Thickness [mm]: 10
• Height [mm]: 60
• Centering Diameter [mm]: 71,1
• Hole Arrangement / Number: 04 / 07
• Wheel Bolt Bore Diameter [mm]: 13,2
• Bolt Hole Circle Ø [mm]: 108
• Minimum thickness [mm]: 8
• Inner Diameter [mm]: 185
• Weight [kg]: 5,2
