BRAKE DISCS - RCZ

Not sure the size you require?

Send us your registration and we can find out for you!

Discs priced individually

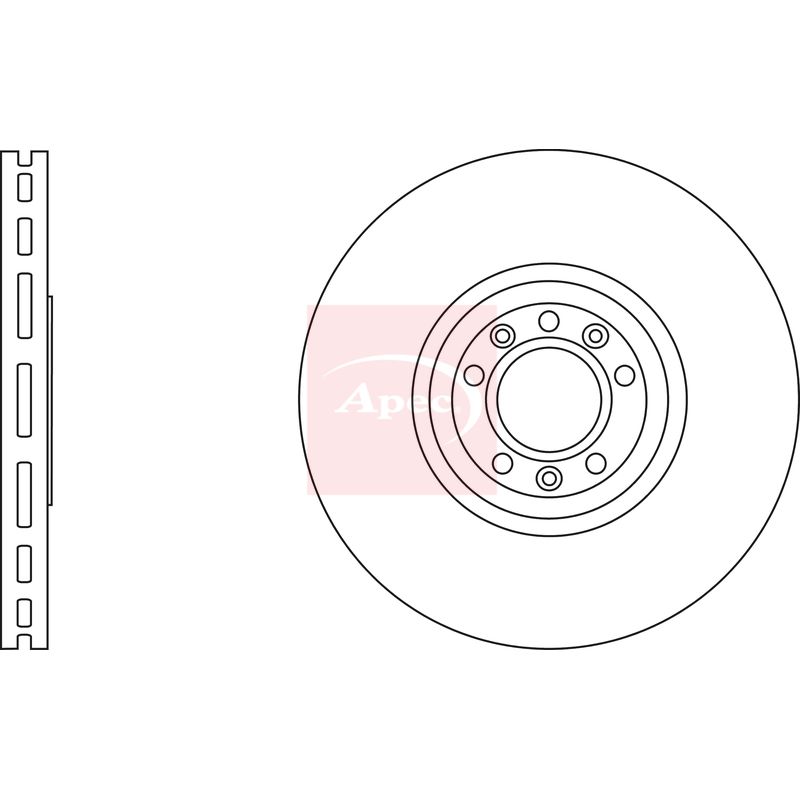

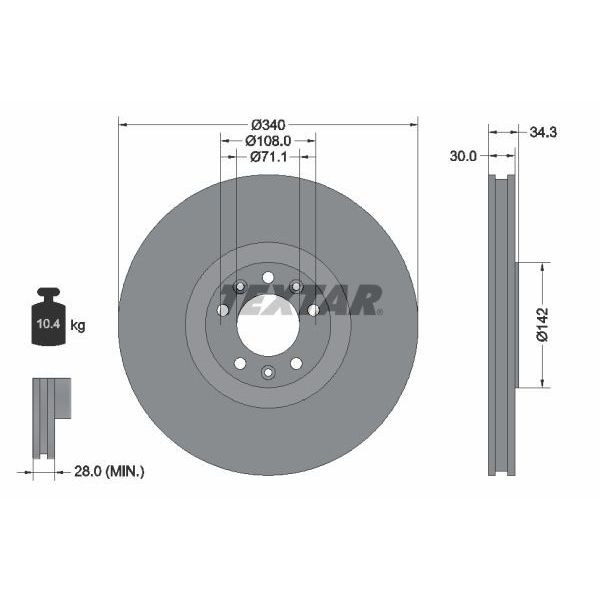

Fronts for 340mm discs:

• Diameter: 340
• Internally vented
• Drilled: No
• Surface: Coated
• Without wheel hub
• Without wheel bearing
• Without wheel studs
• Brake Disc Thickness: 30
• Height: 34,3
• Centering Diameter [mm]: 71,1
• Hole Arrangement / Number: 05 / 08
• Wheel Bolt Bore Diameter [mm]: 13,3
• Bolt Hole Circle Ø [mm]: 108
• Minimum thickness [mm]: 28
• Inner Diameter [mm]: 133
• Weight [kg]: 10,4

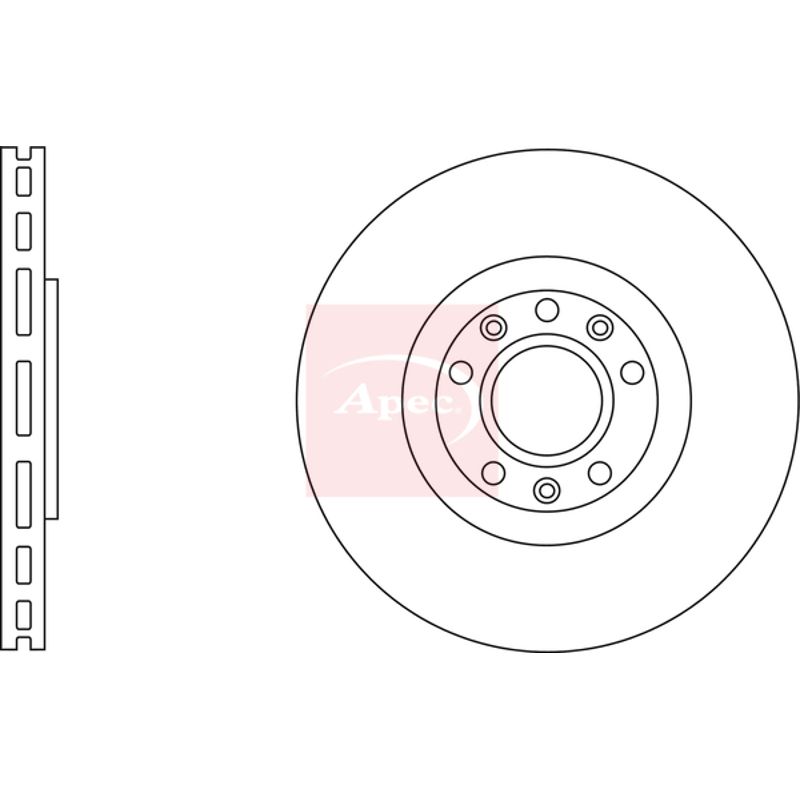

Fronts for 302mm discs:

• Diameter: 302
• Internally vented
• Drilled: No
• Surface: Coated
• Without wheel hub,
• Without wheel bearing
• Without wheel studs
• Brake Disc Thickness: 26
• Height: 34,1
• Centering Diameter [mm]: 66
• Hole Arrangement / Number: 05 / 08
• Wheel Bolt Bore Diameter [mm]: 13,3
• Bolt Hole Circle Ø [mm]: 108
• Minimum thickness [mm]: 24
• Inner Diameter [mm]: 133,4
• Weight [kg]: 7,5

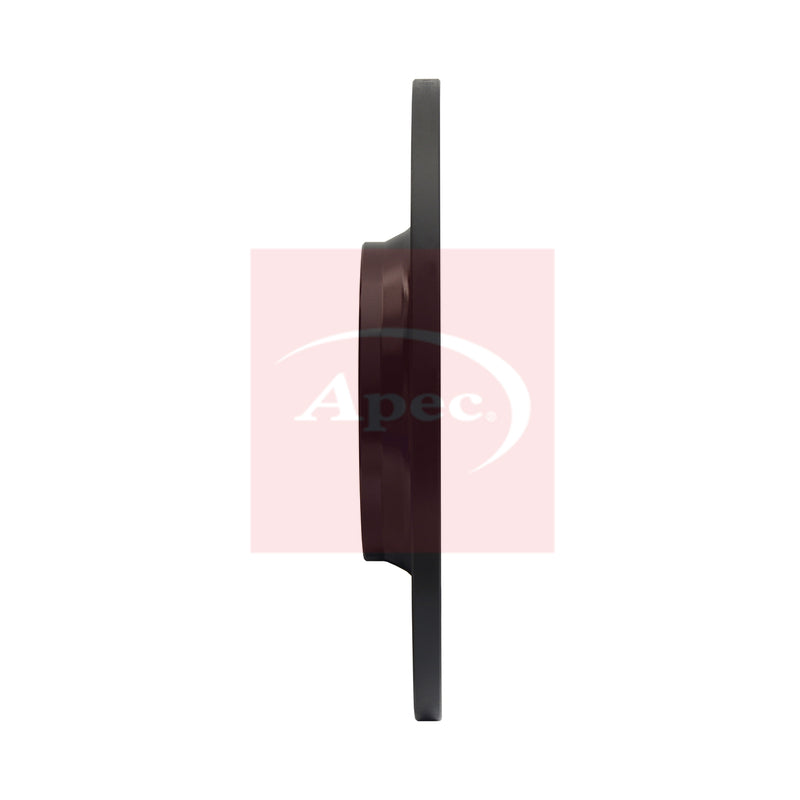

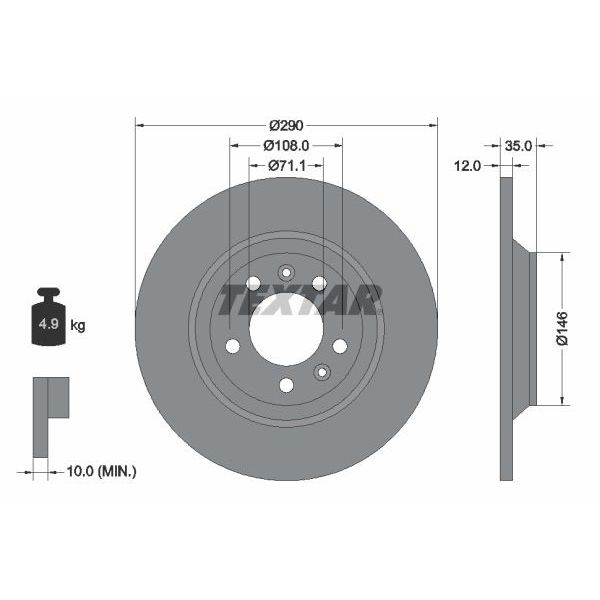

Rear:

• Diameter: 290
• Solid
• Drilled: No
• Surface: Coated
• Without wheel hub
• Without wheel bearing
• Without wheel studs
• Brake Disc Thickness: 12
• Height: 35
• Centering Diameter [mm]: 71,1
• Hole Arrangement / Number: 05 / 07
• Wheel Bolt Bore Diameter [mm]: 13
• Bolt Hole Circle Ø [mm]: 108
• Minimum thickness [mm]: 10
• Inner Diameter [mm]: 151,2
