INLET AND EXHAUST VALVES - 206

Model: 206 GTI 140

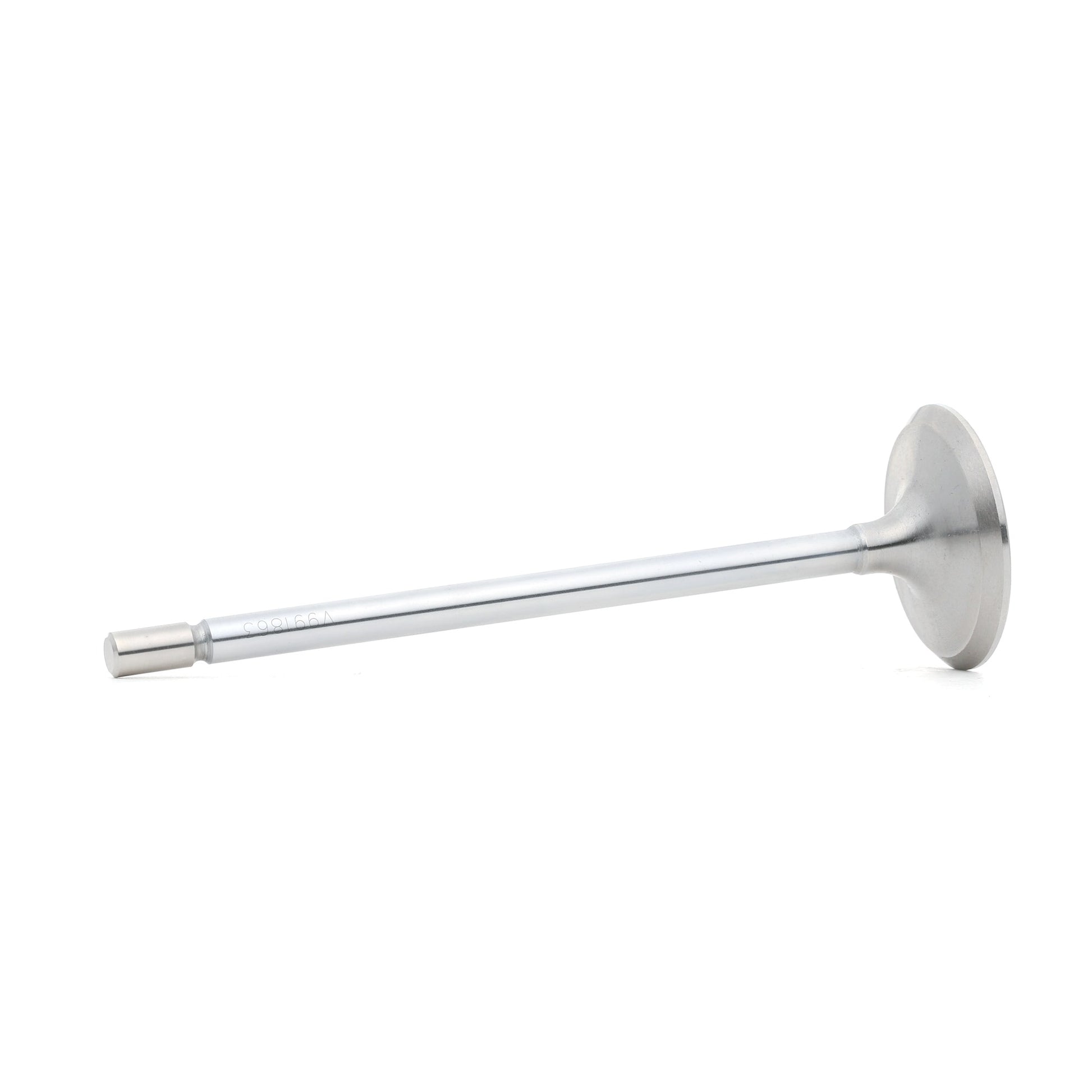

Inlet:

• Head Diameter (mm): 33.3mm
• Length (mm): 106.2mm
• Stem Diameter (mm): 6mm
• Cotter grooves: 1

Exhaust:

• Head Diameter (mm): 29mm
• Length (mm): 103.6mm
• Stem Diameter (mm): 6mm
• Cotter grooves: 1

Model: 206 GTI 180

Inlet:

• Length [mm]: 106
• Valve Stem Diameter [mm]: 6
• Valve Head Diameter [mm]: 35
• Valve seat angle [°]: 45

Exhaust:

• Length [mm]: 102,8
• Valve Stem Diameter [mm]: 6
• Valve Head Diameter [mm]: 31,1
• Valve seat angle [°]: 45
